The DJI Dock 2 is a high-performance, compact platform designed for autonomous drone operations. Equipped with Matrice 3D/3TD drones, it improves efficiency, operational range, and cost-effectiveness. Smaller and lighter than the DJI Dock 1, it enables enterprises to deploy drones quickly and reliably across industries like mining, construction, security, and emergency response.
More capable of heavy ducty, smaller in size. The DJI Dock 2, which is outfitted with the exclusive Matrice 2D/3TD drone, is a high-performance, compact unmanned platform that is lightweight, effortless to set up, and has more robust operational capabilities and cloud-based intelligence functions. These features significantly lower the bar for unattended operations and elevate operational efficiency and quality to a whole new level.
How-To: Deploying DJI Dock 2
How-To: Deploying DJI Dock 2
- Choose the Drone:
Select Matrice 3D or 3TD based on mission type (surveying, inspection, emergency).
- Setup Dock:
Place DJI Dock 2 in a flat area; ensure power supply (100~240V)
- Connect to FlightHub 2:
Integrate with cloud platform for mission planning and monitoring.
- Pre-Flight Check:
Confirm battery levels, camera sensors, and payload mounts
- Automate Flight Missions:
Program routes for surveying, inspection, or monitoring tasks.
- Collect Data:
Use 20MP high-resolution camera or third-party payloads for data capture.
- Analyze Results:
Process images, maps, or measurements for operational insights
- Maintain Dock:
Perform routine maintenance and battery checks to ensure optimal performance.
Table of contents
- How-To: Deploying DJI Dock 2
- Significant changes in DJI Dock 2 compared with DJI Dock 1:
- Below is the comparison between DJI Dock 1 and Dock 2 Specification:
- Aircrafts compatible with DJI Dock 2:
- DJI Dock 2 Integration Support:
- Application scenario with DJI Dock 2:
- Why NineTenths is leading the way with the DJI Dock 2 in Saudi Arabia:
- Summing Up:
- Frequently Asked Questions About DJI Dock 2
Significant changes in DJI Dock 2 compared with DJI Dock 1:
a. Easier to transport and deploy; smaller footprint and lighter weight (34 kg; 0.34 m^2 covered area).
b. Increased efficiency and coverage with a maximum flying time of 50 minutes and an operational range of 10 km.
c. The M3D incorporates a 20MP surveying camera (the same as the M3E camera), which creates new possibilities for mining, construction site management, and other industries.
d. More economical: less expensive for hardware and deployment/maintenance services.
Below is the comparison between DJI Dock 1 and Dock 2 Specification:
| DJI Dock 2 | DJI Dock 1 | |
|---|---|---|
| Weight | 34 kg | 105 kg |
| Size | Dock opened: 1228 × 583 × 412 mm Dock closed: 570 × 583 × 465 mm | Dock opened: 1675 × 885 × 735 mm Dock closed: 800 × 885 × 1065 mm |
| Input Voltage | 100 ~ 240 V, 50/60 Hz | 100 ~ 240 VAC, 50/60 Hz |
| Input Power | Max. 1000 W | Max. 1500 W |
| Temperature | -25°C ~ 45°C | -35°C ~ 50°C |
| IP Rating | IP55 | IP55 |
| Max Take-off Altitude | 2500 m | 4000 m |
| Max Operation Radius | 10 km | 7 km |
| Compatible Drones | DJI Matrice 3D DJI Matrice 3DT | DJI M30 (Dock version) DJI M30T (Dock version) |
| Charge | 32 min (20% – 90%) | 25 min (10% – 90%) |
| Battery Cycles | 400 | 400 |
| Backup Battery | More than 5 hours | More than 5 hours |
| Development | Cloud API + edge computing | Cloud API + edge computing |

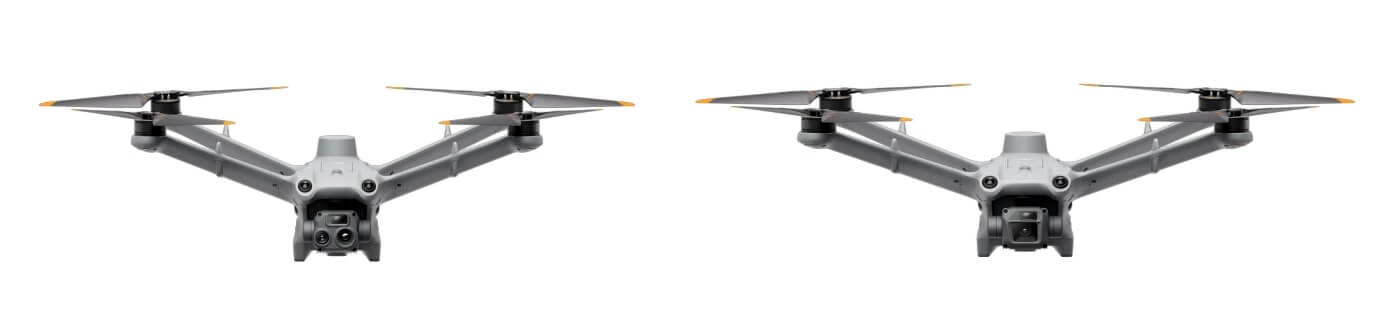

Aircrafts compatible with DJI Dock 2:
DJI Dock 2 is designed to work seamlessly with the new DJI Matrice 3D and Matrice 3DT drones. While M3TD can be used for public safety operations and inspections, M3D can be utilized for high-precision surveying and mapping missions. The table below displays the specs of the drone.
| M3TD | M3T | |
|---|---|---|
| Weight (Including Battery) | 1410 g | 920 g |
| Size (Unfolded) | 335 × 398 × 153 mm | 347.5 × 283 × 107.7 mm |
| Max Horizontal Speed | 21 m/s | 21 m/s |
| Max Wind Speed Resistance | During operation: 12 m/s Takeoff/land: 8 m/s | 12 m/s |
| Max Flight Time | 50 min | 45 min |
| Max Hover Time | 40 min | 38 min |
| IP Rate | IP54 | Not supported |
| Temperature | -20°C ~ 45°C | -10°C ~ 40°C |
| Wide Camera | 1/1.32″ CMOS, 48 MP | 1/2″ CMOS, 48 MP |
| Zoom / Tele Camera | 1/2″ CMOS, 12 MP, 56x Hybrid | 1/2″ CMOS, 12 MP, 56x Hybrid |
| Thermal Camera | 640 × 512 @ 30 fps | 4640 × 512 @ 30 fps |
| Laser Module | Not supported | Not supported |
| FPV Camera | Not supported | Not supported |

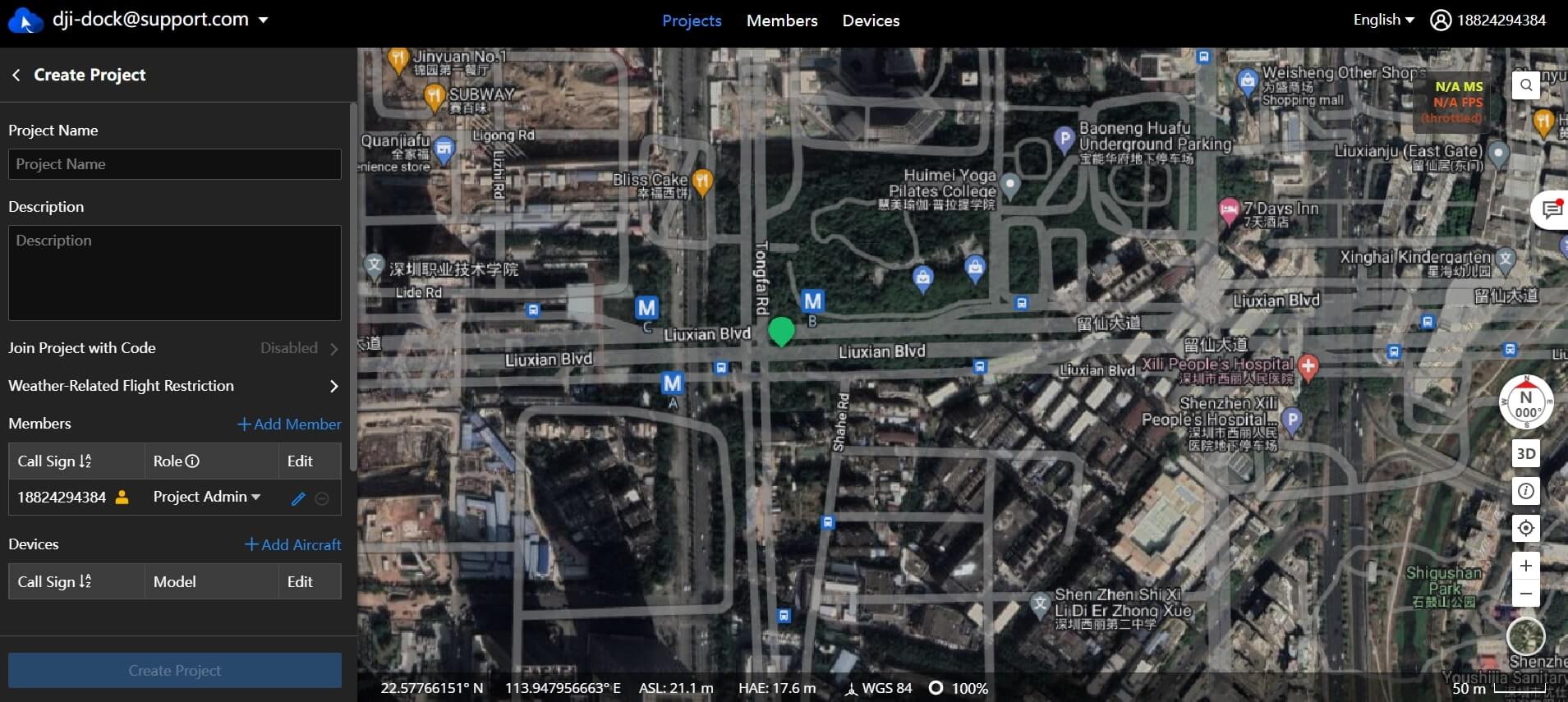

DJI Dock 2 Integration Support:
DJI FlightHub 2 platform is compatible with DJI DOCK 2. Like DJI Dock 1, DJI DOCK 2 is compatible with Cloud API, which enables outside developers to create cloud platforms for DJI DOCK 2 management and operation. The E-Port feature of the M3D/M3TD aircraft enables the mounting of third-party payloads on the aircraft.
Application scenario with DJI Dock 2:
– High precision mapping & surveying
– Construction site progress monitoring
– Earthwork measurements
– Security patrol
– Emergency response
– Automated asset inspections, and so on
Why NineTenths is leading the way with the DJI Dock 2 in Saudi Arabia:
The DJI Dock 2 represents a significant advancement in drone autonomy and efficiency compared to the previous DJI Dock 1 model. Key improvements include:
- Easier deployment and transportation with a smaller footprint and lighter weight (34 kg, 0.34 m^2).
- Increased efficiency and operational range, with up to 50 minutes of flight time and 10 km range.
- Incorporation of a high-resolution 20MP surveying camera, opening up new applications in industries like mining, construction, and more.
- More cost-effective in terms of hardware and maintenance/deployment services.
These advancements make the DJI Dock 2 an attractive solution for enterprises looking to adopt drone technology and autonomous aerial operations. As an authorized DJI dealer and solutions provider in Saudi Arabia, NineTenths is well-positioned to offer the DJI Dock 2 and leverage its capabilities to serve the needs of customers in the region.
Summing Up:
When compared to the DJI Dock 1, the DJI Dock 2 represents a major leap in the drone autonomy market. DJI Dock 2 is a must-have for enterprises adopting drone technology improvements because it offers enhanced capabilities and performance at a cost-effective pricing, leading the way in remote flight operations and setting new benchmarks for efficiency and dependability in autonomous aerial operations.
The DJI Dock 2 is a game-changing solution for autonomous drone operations. With enhanced flight time, operational range, high-resolution sensors, and cost-effective deployment, it sets new standards for efficiency and reliability. NineTenths provides full integration and support in Saudi Arabia, enabling enterprises to automate inspections, surveying, and monitoring tasks safely and efficiently.
Frequently Asked Questions About DJI Dock 2
A compact, autonomous drone docking station enabling high-efficiency operations with Matrice 3D/3TD drones.
Smaller, lighter, longer flight time (50 min), wider operational range (10 km), and includes a 20MP camera for precise surveying.
Matrice 3D for surveying/mapping and Matrice 3TD for inspections, security, and emergency operations.
High-precision mapping, construction monitoring, earthwork measurements, security patrols, emergency response, and automated inspections.
Automates drone deployment, reduces human intervention, increases operational range, and lowers hardware/deployment costs.
Yes, NineTenths provides full deployment, integration, and support for DJI Dock 2 across the region.
