ATMOSPHERE
Gas Awareness on Every Flight.
NevadaNano MPS · 14 flammable gases · 15-year sensor life
Every Scout 137 flight includes continuous flammable-gas detection: built in, calibrated at the factory and logged with position and time. When the atmosphere changes, the inspector is alerted within 20 seconds. It supports your entry-clearance procedure and does not replace it.
Gases
14 flammable
Warnings
20 & 40 %LEL
Calibration
Factory, 15+ years
Response
Under 20 s
WHY IT WORKS
Catches What Nobody Planned For, on Every Flight.
The drone always operates in a safe atmosphere. The Gas Sensor is there for the hazard nobody expected.
14 Flammable Gases, One Sensor
The NevadaNano MPS detects, measures and classifies 14 flammable gases, including methane, propane, hydrogen and butane, across the full 0–100 %LEL range using the TrueLEL™ multi-gas algorithm. Unlike catalytic-bead sensors, it is not affected by poisoning or saturation, and its factory calibration lasts 15+ years with no field calibration.
One sensor covers methane in an offshore separator, butane in an LPG vessel and hydrogen in a refinery sample line, with nothing to swap.

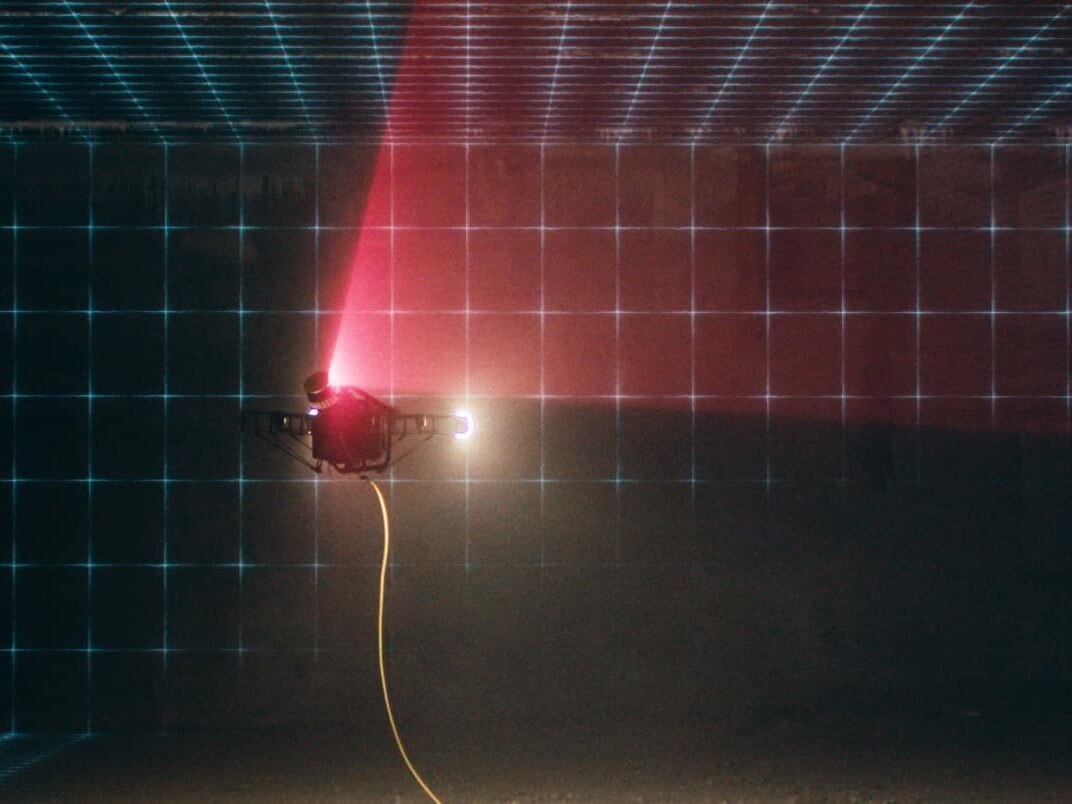

Position and Time in Every Reading
Each gas reading is stored with its position and timestamp against the LiDAR 3D map of the asset, so the flight dataset holds a full record of where every %LEL value was measured.
This location data is not yet shown on a map in Scout Operator, Companion or Scout Portal, but it is kept in the dataset for later analysis or export.

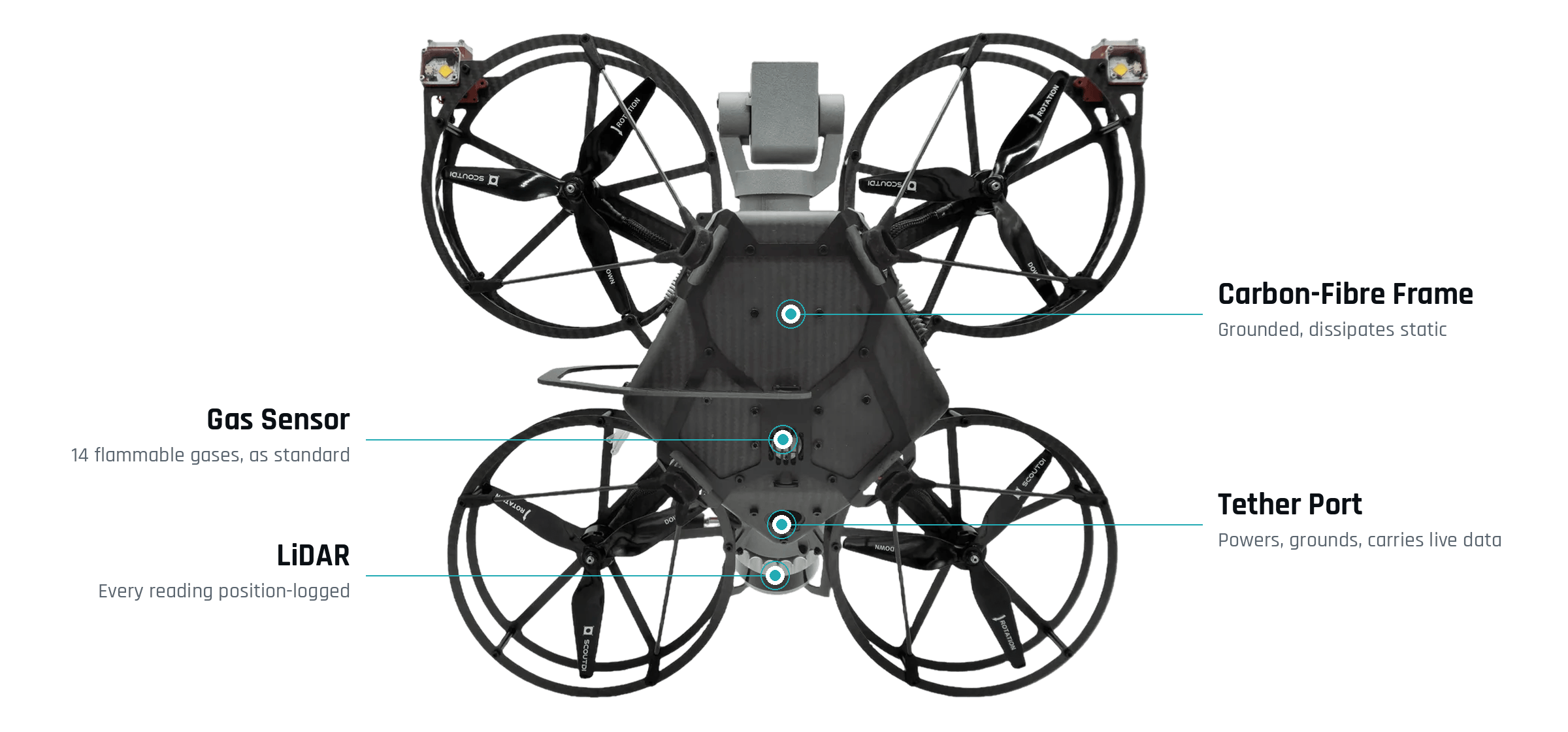

DESIGNED IN
Safety as Standard, Not an Upgrade.
Comes as Standard

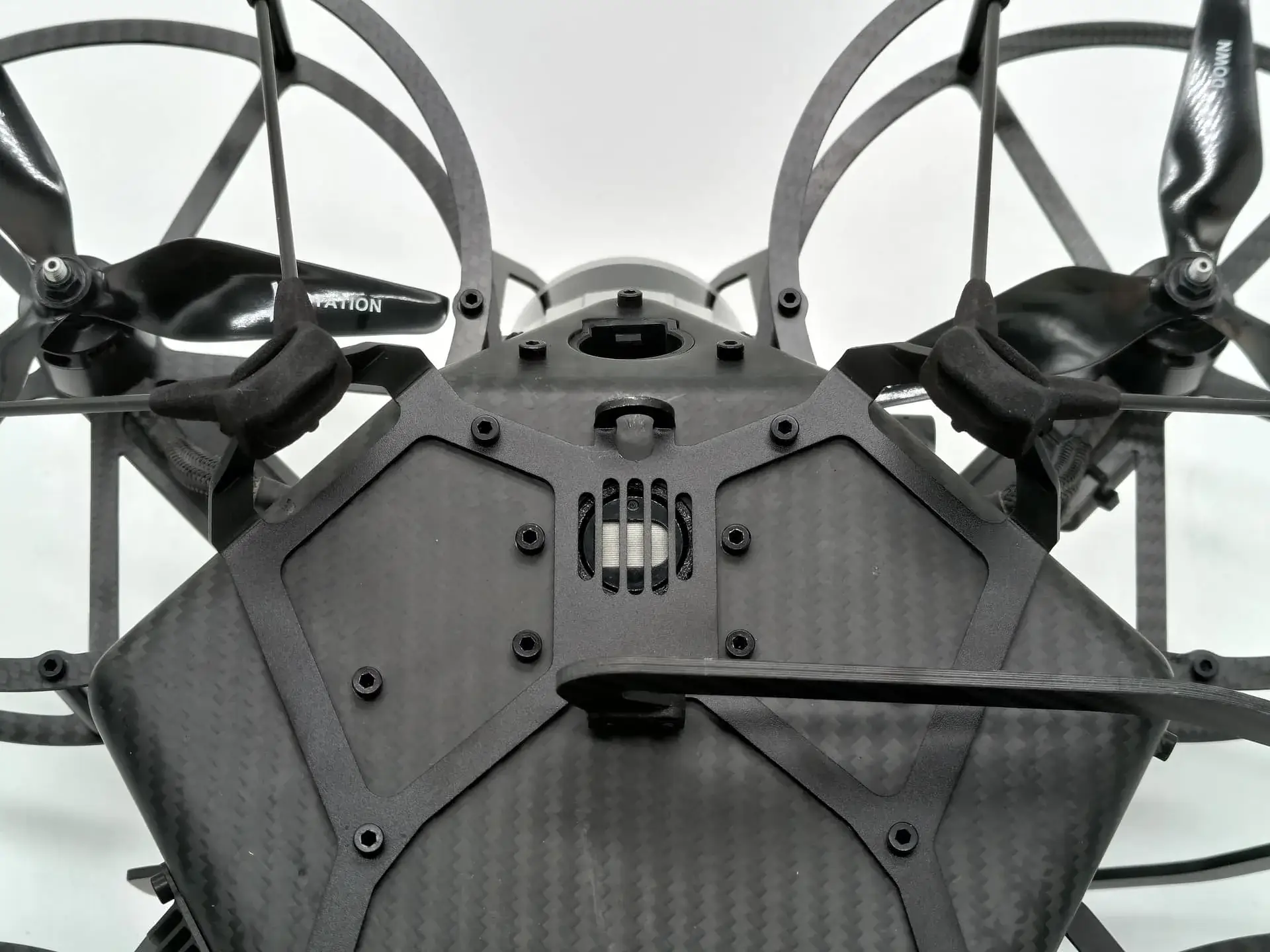

The sensor sits in the smartbox underside, and gas reaches it through a grille and foam vent. Nothing to mount and nothing to swap.
Carbon-Fibre Frame
The whole frame is electrically continuous and connected to the tether, so no isolated charge can build up into a spark. Light, stiff and grounded by design.
Tether Port
The tether supplies power, grounds the chassis and carries live data to Scout Operator. Battery-free and zero-RF by design, with a third-party propane-chamber test showing no ignition.
HONEST ABOUT IGNITION
Scout 137 Is Not ATEX-Certified, and No Inspection Drone in Its Class Is.
ATEX was written for fixed equipment inside a defined enclosure, which makes approval very hard for a flying platform. Scout 137 was designed for verifiable ignition safety from the start:
- Zero RF: no transmitters, Wi-Fi, Bluetooth, cellular or GPS.
- Battery-free: power comes through the tether.
- Chassis grounded: held at ground potential through the tether.
- Static dissipated: the tether continuously discharges any build-up.
- Propane-chamber tested: third-party test, over an hour with no ignition.
The sensor itself is intrinsically safe certified under ATEX, IECEx, UL, FM and CSA (S4 format), and complies with EN 50271 and IEC 60079-29-1. Combined with your operating procedure, this lets Scout 137 work safely in places people should not enter.
HOW IT WORKS
No Extra Workflow.
The sensor is already on the drone. It switches on with the drone, runs in the background of every inspection and records alongside the rest of the flight.
01
Power On
The sensor activates automatically with the drone. Initialisation takes 1–2 minutes, and its status appears in the Scout Operator panel.
02
Fly
Fly your inspection as usual. The sensor reads the atmosphere continuously while everything else is captured, with no extra steps.
03
Watch
Live %LEL and ambient temperature stream to Scout Operator. If the atmosphere changes, the inspector sees it within 20 seconds, not the next day. Warnings trigger automatically at 20 and 40 %LEL.
04
Record
Every reading is saved with the flight data: %LEL, temperature, position and timestamp.
Gas Sensor Specifications
Full technical specifications for the Scout 137 Gas Sensor, covering the sensor, accuracy, calibration, certifications, environment and ignition safety.
Sensor
MODEL
NevadaNano MPS Flammable Gas Sensor (MPSF02-S42505-E0).
DETECTION RANGE
0–100 %LEL across all listed gases.
RESOLUTION
0.1 %LEL.
RESPONSE TIME (T90)
Under 20 seconds.
GAS CLASSIFICATION
TrueLEL™ multi-gas (NevadaNano).
Accuracy (0–50 %LEL)
METHANE
±3 %LEL.
BUTANE, ETHANE, HYDROGEN, ISOBUTANE, ISOBUTYLENE, METHYL ETHYL KETONE, PENTANE, PROPYLENE
±5 %LEL.
PROPANE
±6 %LEL.
ISOPROPANOL
±10 %LEL.
OCTANE, TOLUENE, XYLENE
±12 %LEL.
Calibration & Self-Test
CALIBRATION
Factory calibrated, no field calibration needed.
SENSOR LIFE
15+ years.
SELF-TEST
Power-On Self-Test (POST) and Built-In Self-Test.
Certifications (Sensor Component)
INTRINSIC SAFETY
ATEX Zone 0, IECEx, UL, FM, CSA (S4 format).
FUNCTIONAL SAFETY
EN 50271.
PERFORMANCE
IEC 60079-29-1.
Environmental
OPERATING TEMPERATURE
−20 °C to +50 °C.
HUMIDITY
0–100 %RH.
PRESSURE
80–120 kPa.
Mount & Operation
MOUNT
Built into the smartbox, not swappable.
ACTIVATION
Automatic when the drone powers on.
Drone Ignition Safety
NO RF
Battery-free, tethered power
CHASSIS GROUNDED
Third-party propane-chamber test, over one hour, no ignition.
Frequently Asked Questions
14 flammable gases: methane, butane, ethane, hydrogen, isobutane, isobutylene, methyl ethyl ketone, pentane, propylene, propane, isopropanol, octane, toluene and xylene, across 0–100 %LEL.
The sensor’s response time (T90) is under 20 seconds. Live %LEL and temperature appear in Scout Operator, with automatic warnings at 20 and 40 %LEL.
No field calibration is needed. The sensor is factory calibrated, has a life of 15+ years and runs power-on and built-in self-tests.
No. The drone is not ATEX-certified, but it is designed for ignition safety: zero RF, battery-free, grounded through the tether and propane-chamber tested. The sensor component itself is certified under ATEX Zone 0, IECEx, UL, FM and CSA. It supports, but does not replace, your entry-clearance procedure.
Yes. NineTenths handles quote requests in Saudi Arabia. Contact us at info@9tenthsco.com or 920015910 for pricing and availability.
