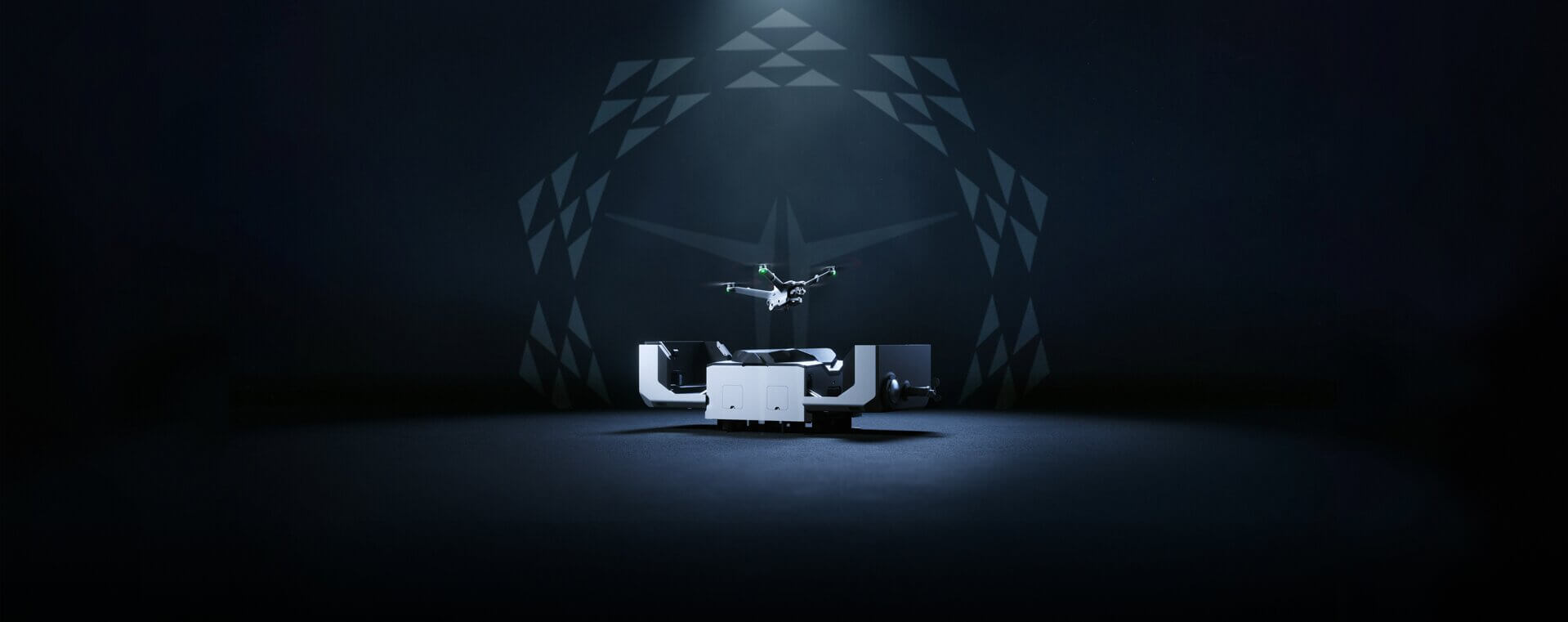

DJI Dock 2
Dock Station 2
Following the release of its initial model, DJI has introduced the improved autonomous drone platform known as "DJI DOCK 2." This new drone dock is reasonably priced and has a lightweight construction, weighing only 34 kg. The DJI Matrice 3D/3TD series drone is compatible with the DJI DOCK 2, enabling it to perform high-precision mapping, surveying, and security inspection duties.
Lightweight and
Easy to Deploy
IP55 Ingress Protection
10km Max Effective
Operating Radius
Integrated Environmental
Monitoring System
Cloud-Based
Modeling
FlyTo Task
Private Deployment
Third-Party
Payload Support
Specs
Aircrafts compatible
with DJI Dock 2 :
DJI Dock 2 is designed to work seamlessly with the new DJI Matrice 3D and Matrice 3DT drones. While M3TD can be used for public safety operations and inspections, M3D can be utilized for high-precision surveying and mapping missions.
.jpg)
Wide-Angle Camera
4/3 CMOS
24mm Format Equivalent
20MP Effective Pixels
Mechanical Shutter
Tele Camera
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels

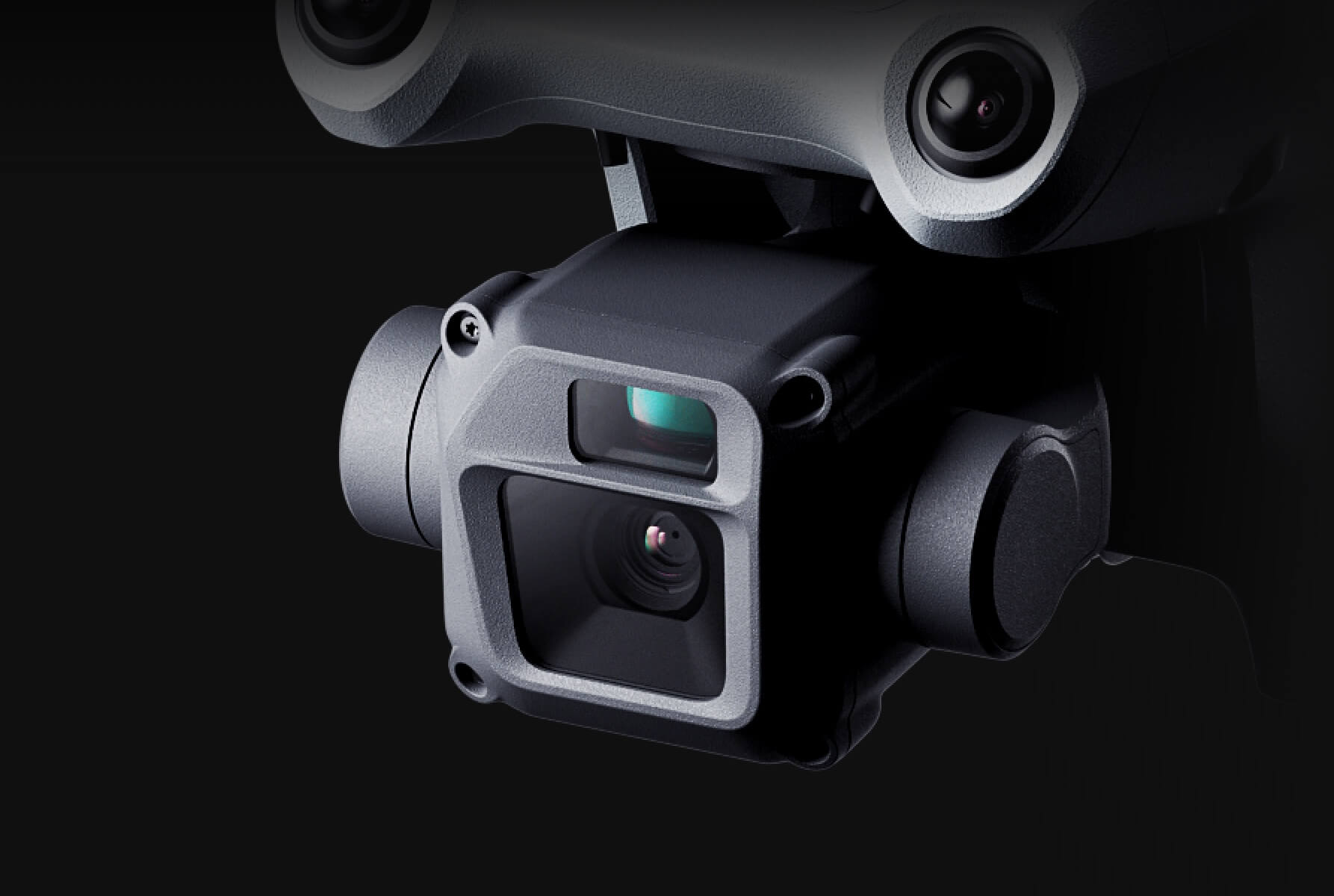

DJI Matrice 3D
.jpg)

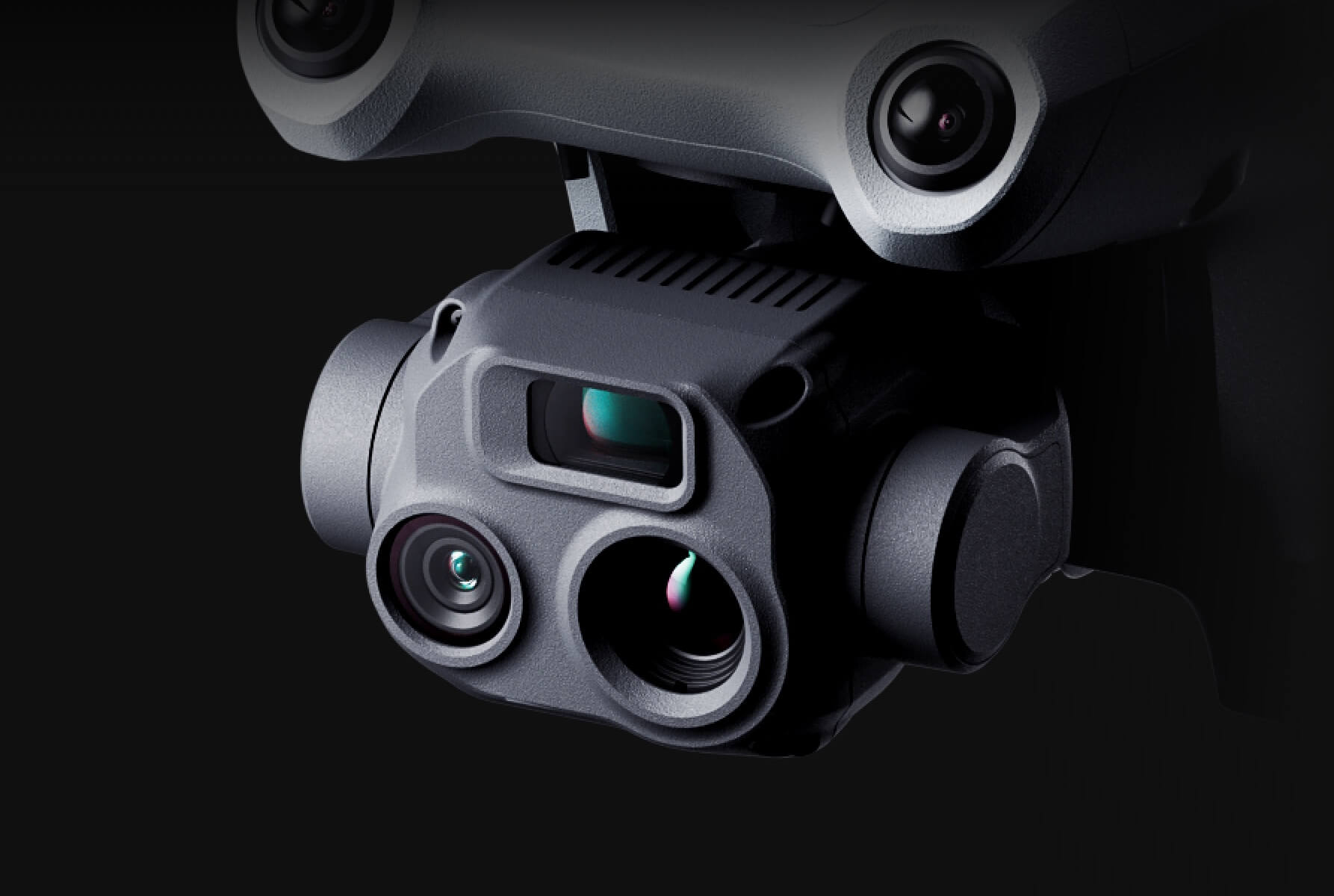

DJI Matrice 3TD
Wide-Angle Camera
1/1.32-inch CMOS
24mm Format Equivalent
48MP Effective Pixels
Tele Camera
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
Infrared Camera
40mm Format Equivalent
Normal Mode: 640×512@30fps
UHR Infrared Image Mode: 1280×1024@30fps (With the UHR Infrared Image function enabled, the aircraft automatically enables or disables UHR Infrared Image mode according to the ambient light brightness.)
28x Digital Zoom
Lightweight Design
Prior to deployment, the aircraft utilizes vision sensors to assess the surrounding environment and quickly determine the strength of GNSS signals in the area. This vision-based evaluation significantly speeds up the site selection process, reducing the time required from five hours to just twelve minutes or less.
Efficient Site Evaluation
The DJI Dock 2 is 75% smaller and 68% lighter than its predecessor, making it easy to transport with just two people. This design offers flexibility during installation and helps reduce installation costs.
.jpg)

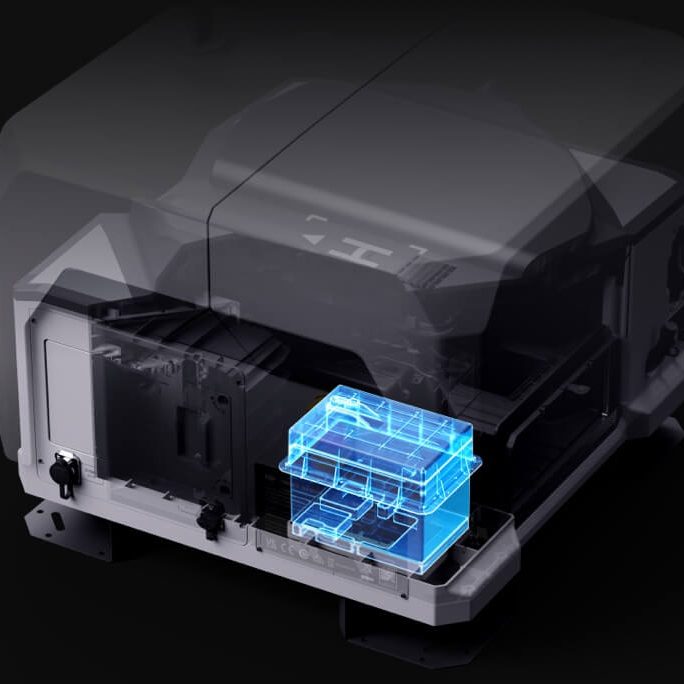

In the event of an unexpected power failure, the DJI Dock 2's built-in backup battery allows it to operate autonomously for more than five hours, providing ample time for the aircraft to return and safely land.
Built-In Backup Battery
.jpg)
Thanks to its advanced protection and reliability, the DJI Dock 2 requires maintenance only once every six months, helping to effectively manage labor costs.
Six-Month Maintenance Interval
.jpg)

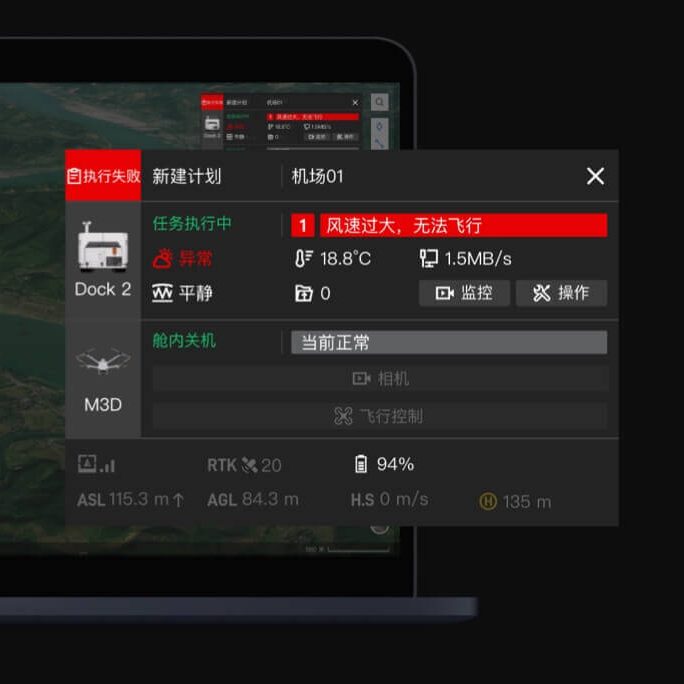

In the event of task failures or emergencies with the DJI Dock 2 or the aircraft, DJI FlightHub 2 will instantly send email notifications. This enables operators to quickly identify and troubleshoot issues using the detailed information provided.
Abnormal Condition Notifications
